Pressure testing pipes with nitrogen is a common practice in various industries, including construction, manufacturing, and oil and gas. Nitrogen is often used because it is an inert gas that doesn't react with the materials inside the pipe and is readily available.
Many industries, such as construction, manufacturing, petrochemical, and oil and gas, have established industry standards and codes that require pressure testing of certain systems, pipelines, or equipment using nitrogen or other suitable testing fluids. These standards ensure the integrity and safety of the systems. Therefore, pressure testing pipe with Nitrogen is necessary for the integrity and safety of the piping system.
Ensure that the pipe to be tested is clean and free of debris or foreign materials.

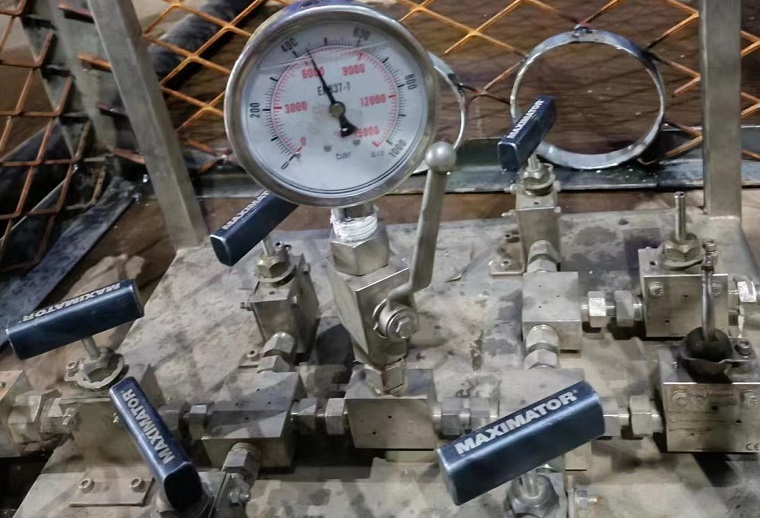

Install appropriate fittings, valves, and pressure gauges on both ends of the pipe to control and monitor the pressure.
Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and hearing protection, if necessary.
Ensure the area is well-ventilated, especially if there is a risk of nitrogen leakage.
Before introducing nitrogen, it's crucial to purge the pipe of any air or other gases that may be present. This is done to prevent the formation of potentially explosive mixtures.
To purge, slowly introduce nitrogen into the pipe while allowing air or other gases to escape from the open end of the pipe until the system is filled with nitrogen.
Gradually increase the pressure inside the pipe with nitrogen to the specified test pressure. This pressure is often well above the expected operating pressure to ensure the pipe's integrity.
Maintain the test pressure for a specified duration, typically according to industry standards and regulations. Common test durations are 15 minutes to several hours.

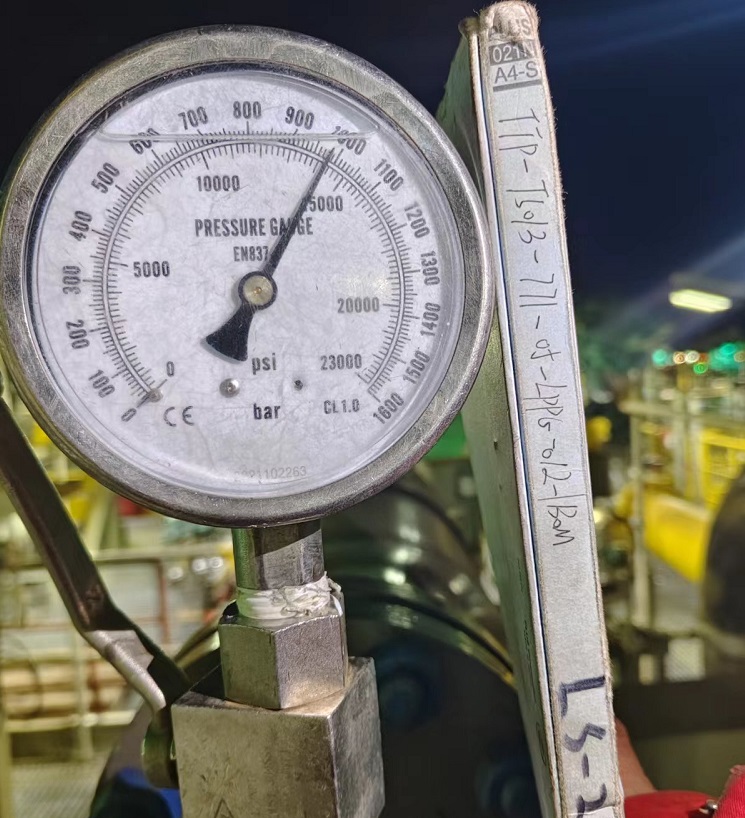

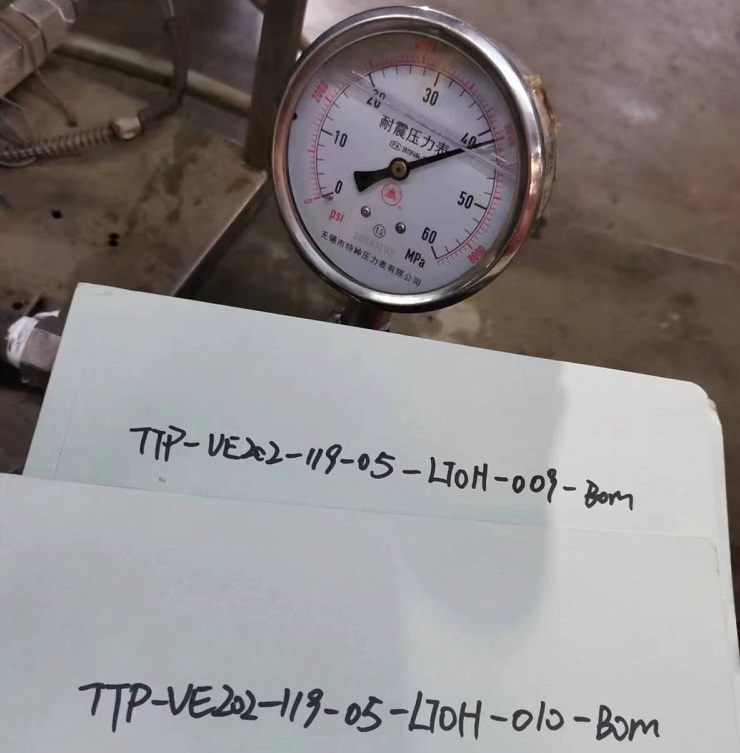

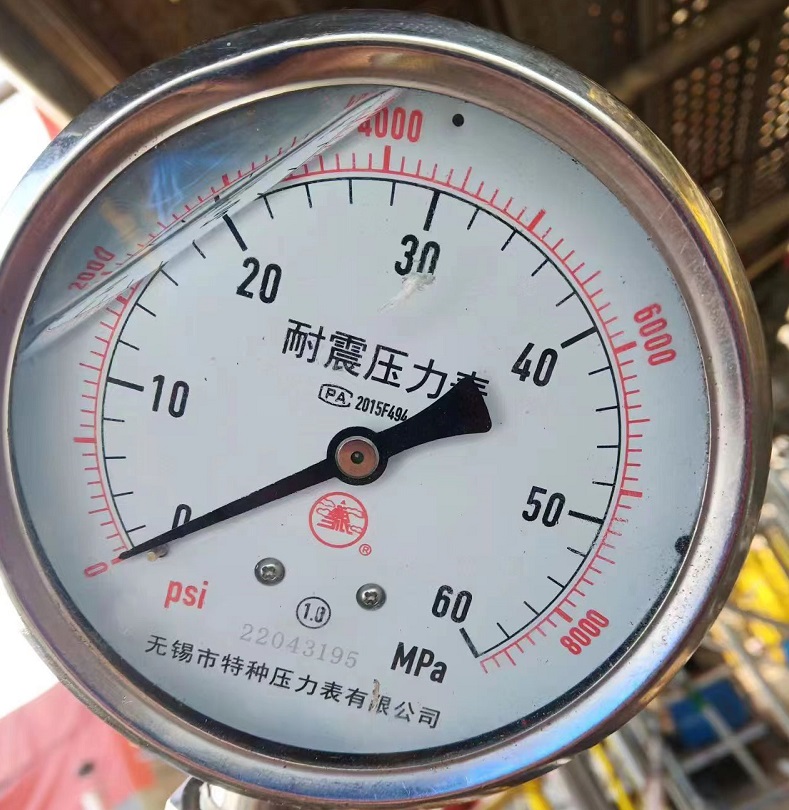

Continuously monitor the pressure using pressure gauges and record the pressure readings at regular intervals.
Check for any pressure drop, which could indicate a leak in the pipe.
If a pressure drop is observed, conduct a leak test to locate and repair any leaks.
Common methods for leak detection include soap bubble tests, ultrasonic testing, or using specialized leak detection equipment.
Once the pressure test is successfully completed, release the nitrogen slowly to avoid sudden pressure drops, which could damage the pipe or its components.
Safely depressurize the system and remove the test equipment.

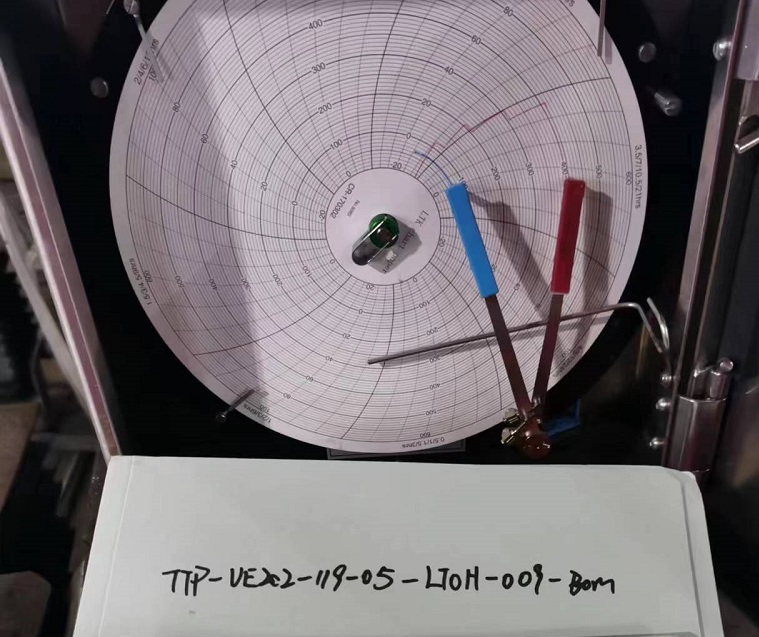

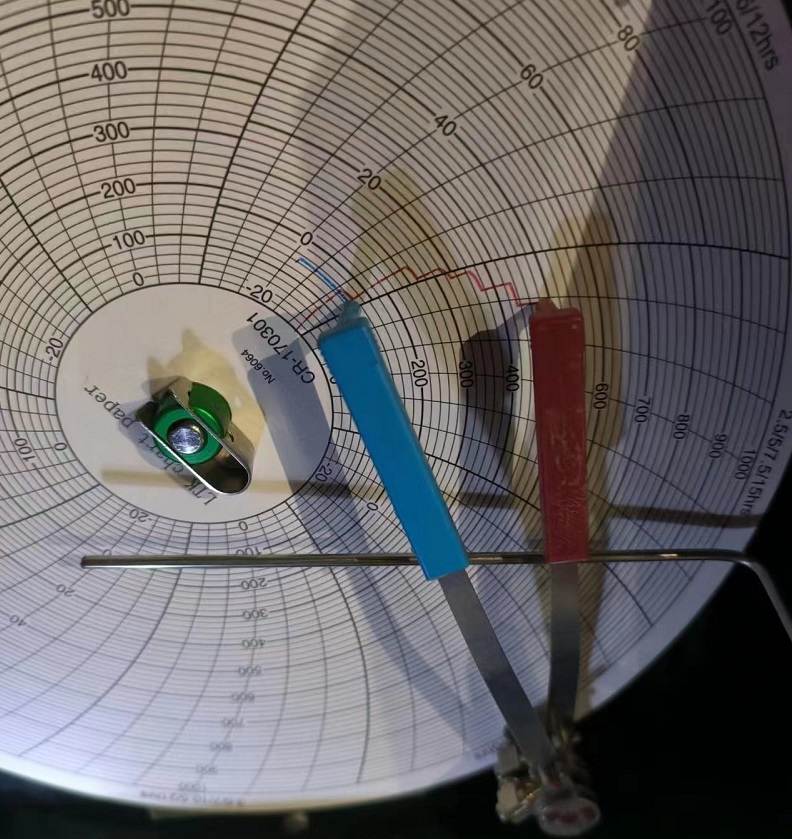

Document the entire pressure testing process, including pressure readings, test duration, and any issues encountered.
Keep records for compliance and quality control purposes.
Properly vent or capture the nitrogen to prevent its release into the environment.
Be aware of the potential hazards of working with nitrogen, including its potential to displace oxygen in confined spaces.
